LumiStar® 1000

LumiStar® 1000 LED Luminaire Series USL13/33

This light is an extremely reliable sight glass luminaire. Resistant to shock and vibration.

Request a Quote
Request a Quote

LED vs Halogen

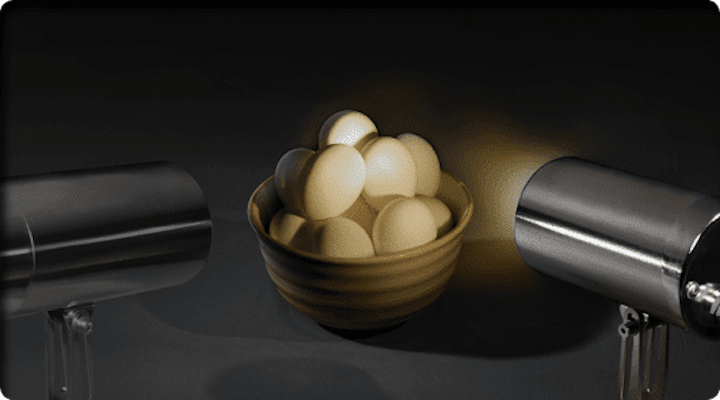

Original Image Halogen Light

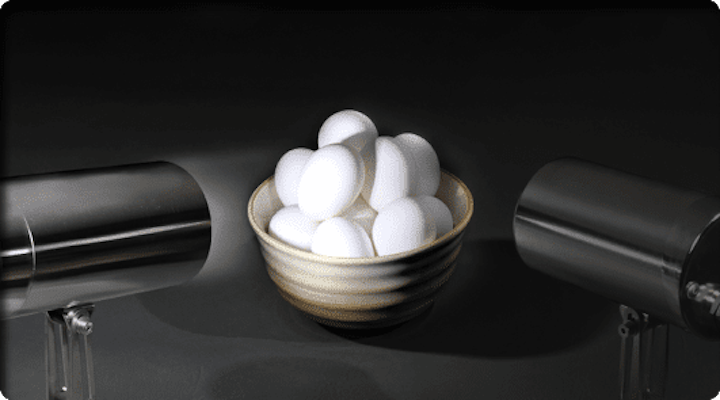

Modified Image LED Light

LumiStar® 1000 is the world’s brightest compact sight glass luminaire: it is two times brighter than a typical sight glass light, offering an unprecedented view of processes. Ultra-bright LED provides 1000 lumens at full brightness, two times the light output than a typical 100-Watt halogen light. The total internal reflection (TIR) lens with 23-degree beam angle, is ideal for vessel illumination through a sight glass with maximum light output and less than 5% loss of light output. The light is capable of continuous operation and emits cool white, 5500K color temperature, optimized for stainless steel vessels.

The light is designed for cool operation equipped with temperature-based current limiting and automatic dimming; over temperature shutdown. The LEDs have a long service life and are vibration and impact resistant. No heat radiation is directed into the process vessel (cold light output). The housing is available with a mounting bracket (USL13 Light) or a sanitary clamp connection (USL33 Light).
