LumiStar® 1000
  • 1000 lumens.
  • 2x as bright as a typical 100W halogen light.
  • 5% the energy consumption: 9 W.
  • Washdown safe, IP65.
  • Mechanical pushbutton.
  • Flashlight mode (momentary), timed mode, continuous, 9 dimmable settings.
  • Cost competitive.
  • Applications: food and beverage, craft brewing, 1000 gallon size vessels.
LumiStar® 2000
  • 2000 lumens.
  • 3x as bright as a typical 100W halogen light.
  • 10% the energy consumption: 30 W.
  • Washdown safe, IP65.
  • Mechanical pushbutton.
  • Flashlight mode (momentary), timed mode, continuous, 9 dimmable settings.
  • Auto dimming prevents overheating.
  • Applications: chemical, 2500 to 5000 gallon size vessels.
LumiStar® 3000
  • 3000 lumens.
  • 4x as bright as a typical 100W halogen light.
  • 10% the energy consumption: 40 W.
  • Washdown safe, IP65.
  • Capacitive switch, crevice-free.
  • Flashlight mode, intermittent, 9 dimmable settings, timer mode.
  • Programmable control: timer mode, remote operation.
  • Auto dimming prevents overheating.
  • Applications: pharmaceutical, 5000 to 7000-gallon size tanks and silos.
Lumistar Mini Luminaire ESL 51LED
  • Mounting: bracket, wiper clip or sanitary clamp
  • Light source: LED (ESL51)
  • Power: 24V
  • Housing: stainless steel, IP65
  • Size: 24mm x 75mm

The LumiStar family offers unprecedented, penetrating illumination of vessels, up to four times brighter than a typical halogen luminaire. Depending on the model, a range of features are available, including automatic dimming, programmable control, and remote switching. All LumiStar LED lights are crevice free and washdown safe. Mount with bracket on the retaining ring of a standard sight window, or clamp mount over a sterile-style sight glass (dedicated light port).

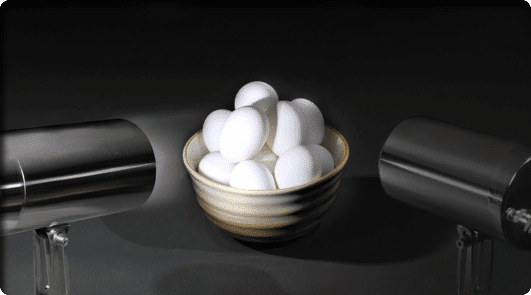

Original Image LED Lighting

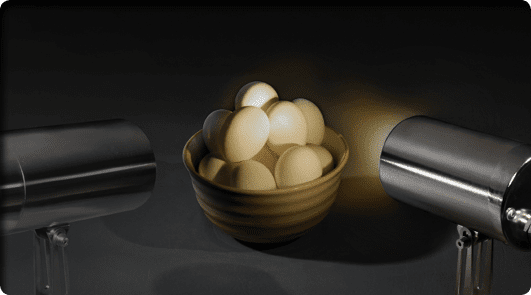

Modified Image Halogen Lighting

LED vs Halogen
