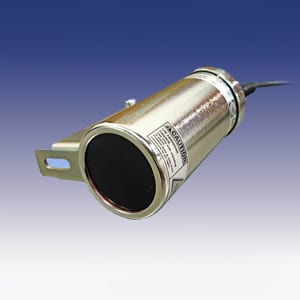

LumiStar365UV® LED Luminaire Series USL 13/33 Stainless Steel

LumiStar365UV® LED Luminaire Series USL13/33

As the world’s brightest compact sight glass UV-LED Luminaire, the LumiStar365UV® luminaire is capable of providing ASME BPE standard UV output with a fraction of the size and power needs, offering unprecedented UV-LED illumination.

Request a Quote
Request a Quote

The LumiStar365UV is the world’s brightest compact UV-LED luminaire: The ultra-bright LED provides 4.6 Watts of 365nm UV light with an internal reflector which delivers an ASME compliant 5mW/cm2 at 15 inches; 365nm UV intensity. Unlike mercury bulbs, the filtered light ensures a tight spectrum of emitted UV light and eliminates all emitted visible light for easier identification than UV fluorescents.

This LED version is a safer alternative and easier disposal than mercury bulbs (RoHS compliant) and is also capable of continuous operation. Features include cool operation with temperature-based current limiting and automatic dimming with over temperature shutdown. These LED lights provide long service life and are vibration and impact resistant with no IR heat radiation emitted into process vessel (cold light output).
