LumiStar® 1000
LumiStar® 1000 LED Luminaire Series USL13/33
This light is an extremely reliable sight glass luminaire. Resistant to shock and vibration.
Request a Quote
Request a QuoteFits the following nominal sizes:
- Circular Weld-On Sight Glass fitting to DIN 28120: from Size DN 50 (2” view diameter)
- Circular ANSI Bolt-On Sight window: from size 2”
- Visual Flow Indicators: from size 1”
- Circular Weld-Neck Sight Glass fitting series MV: from DN 50
- Sanitary Clamp Connection Series MetaClamp: from 1”
Approvals
- ETL listed for all 12-24V and 110-240V with standard cable connection
- CE compliant for all 12-24V configurations
Protection:
- Conforms to UL STD 2108 and certified to CSA STD 22.2 #250.2
- Dust and waterjet tight to IP 65 to DIN EN 60529/DIN VDE 0470 Part 1
Operating voltage:
- Low Voltage: 12-24V (AC or DC)
- High Voltage: 110-240V AC
LED vs Halogen
Halogen Light
LED Light
Datasheet - LumiStar1000 LED Luminaire Series USL13/33
LumiStar1000 IOM
Important Guidelines
Process Vessel Lighting: Just Be Cool
Diffused Light White Paper Release
Analysis of Undiffused and Diffused Light on Stainless Steel
Sight Glass Lighting Handbook
Sanitary Fittings Best Practices
Crafted for Success: Six Vital Questions for Brewery Sight Glass Lighting
Key Lighting Questions for Craft Brewing Success
A UV Sight Glass Light Optimizes your Process Vessel Inspection
Replace Halogen Process Lighting With LEDs
LumiStar® 1000 is the world’s brightest compact sight glass luminaire: it is two times brighter than a typical sight glass light, offering an unprecedented view of processes. Ultra-bright LED provides 1000 lumens at full brightness, two times the light output than a typical 100-Watt halogen light. The total internal reflection (TIR) lens with 23-degree beam angle, is ideal for vessel illumination through a sight glass with maximum light output and less than 5% loss of light output. The light is capable of continuous operation and emits cool white, 5500K color temperature, optimized for stainless steel vessels.

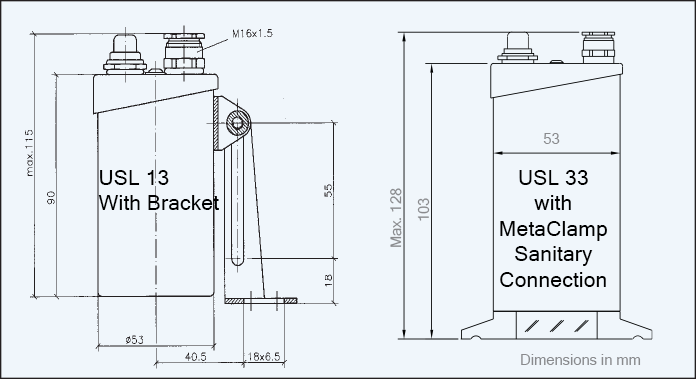

The light is designed for cool operation equipped with temperature-based current limiting and automatic dimming; over temperature shutdown. The LEDs have a long service life and are vibration and impact resistant. No heat radiation is directed into the process vessel (cold light output). The housing is available with a mounting bracket (USL13 Light) or a sanitary clamp connection (USL33 Light).
