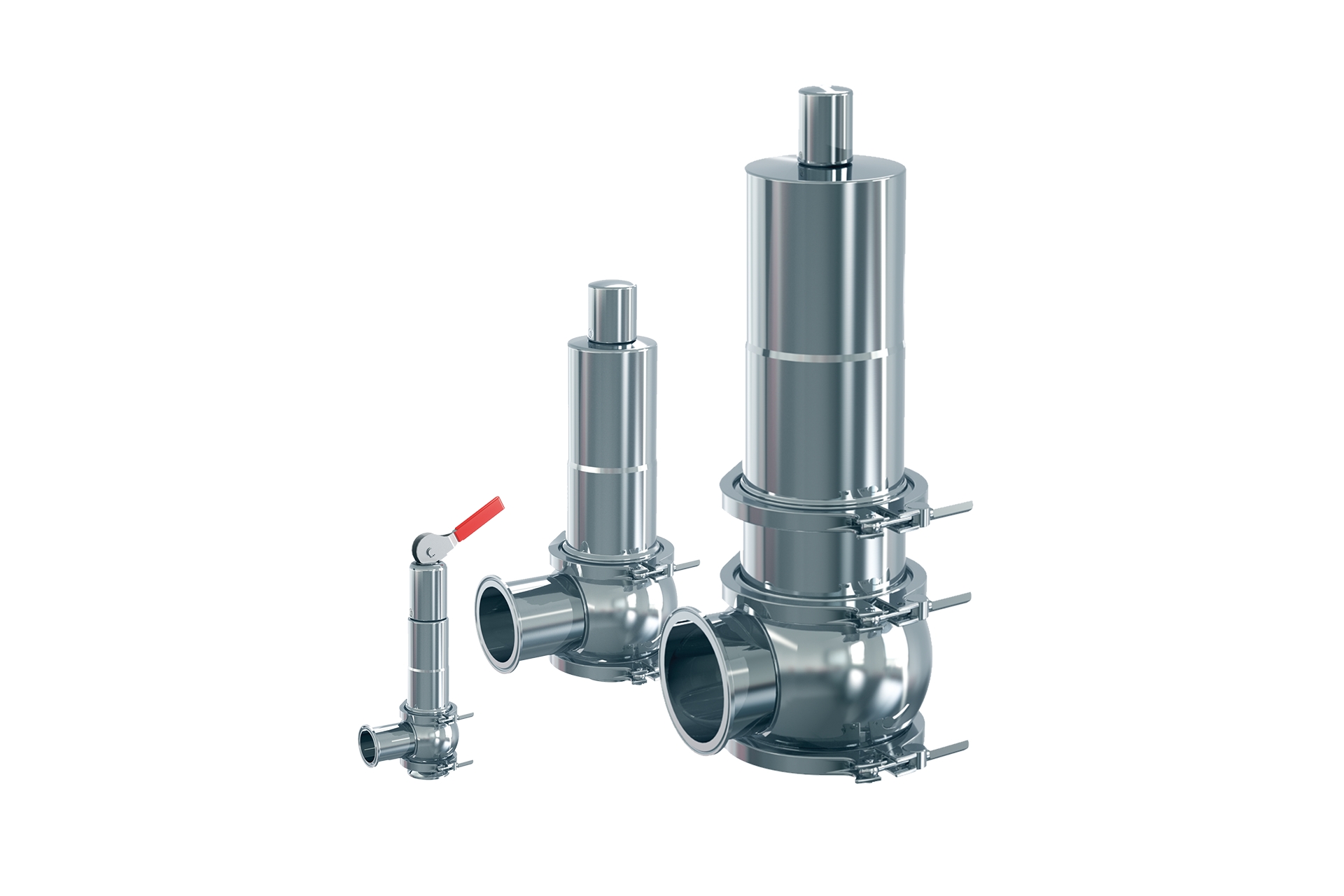

Goetze 4000 Series Hygienic Safety Valves

Safety valve made of stainless steel, angle type, with stainless steel spring.

Suitable for

Examples of Use

For the protection of:

• Processes, plants and containers in the food and pharmaceutical industries for air, neutral and non-neutral vapors and gases, steam and liquids

Within:

• Food industry
• Dairy industry
• Breweries and Beverage industry
• Pharmaceutical industry
• Cosmetic industry
• Medical technology
• Clean service applications

Features

• Smooth and faultless surface finish optimized for cleaning process
• Minimal dead space in inlet area and no gaps in the valve
• Exposed and rinsed o-ring seals
• Shape of valve body avoids formation of puddles in the valve after it has opened
• Suitable for CIP/SIP due to pneumatic lifting device
• Gap-free installation of seals in contact with the medium
• Surface roughness in the primary area Ra < 0.75 µm
• Optional: electropolished and/or mechanically polished
• Molded diaphragm for separating the product space from the spring housing
• Dead space ratio L/D ~ 2,0

Available Nominal Diameters and Connection Sizes
