Aseptic Sight Glass Window
Aseptic Sight Glass with METAGLAS®
Aseptic Sight Glass with METAGLAS® for sanitary applications. Provides clear process visibility and unmatched safety with minimal maintenance.
Request a Quote
Request a QuoteFlush Mount Fitting
- Weld flange material: 316L SS or Hastelloy®
- Bolting material: 316 SS
- Operating Pressure: 100 PSIG (7 bar)
- Operating Temperature: 392°F (200°C)
| Metaglas Ring Material: | Operating Temperature: |
|---|---|
| Duplex S.S. (1.4462) | -30°C to 280°C (-22°F to 536°F) |
| Hastelloy C-22 (2.4602 | -60°C to 300°C (-76°F to 572°F) |
| Std. Tube OD (inches) | d1 | d3 | S1 | S | Dy | Di |
|---|---|---|---|---|---|---|
| 1/2″, 3/4″ | 25.0 | 13 | 6 | 11 | 55 | 15.0 |
| 1″, 1-1/2″ | 50.5 | 30 | 8 | 14 | 85 | 35.5 |
| 2″ | 64.0 | 35 | 8 | 14 | 100 | 48.5 |
| 2-1/2″ | 77.5 | 40 | 8 | 15 | 112 | 60.2 |
| 3″ | 91.0 | 45 | 8 | 18 | 131 | 72.0 |
| 4″ | 119.0 | 60 | 8 | 18 | 170 | 97.6 |
All dimensions are in millimeters unless otherwise noted.
Specing a Sight Glass? Need a Quote? Let's Get Started
Get the right sight glass for the right application by talking to one of our application experts.
Find Your Sight Glass
Datasheet - Aseptic Sight Glass with METAGLAS®
Datasheet - METAGLAS® Line Overview
Installation / Operation / Maintenance Manual
METAGLAS® Extreme Pressure Test
Sight Glass Application Handbook
Step-by-Step Guide to Sight Glass Selection
Why METAGLAS®
How to Ensure Sight Glass Safety - Tutorial
How to Select and Maintain Sight Glasses for Chemical and Pharmaceutical Applications
Biotech Company Upgrades to Borosilicate Sight Glasses
Six Tips for Critical Sight Glass Application White Paper
Seis Consejos Para Aplicaciones Críticas Con Mirillas
Compression vs. Fusion: The Source of Strength in Fused Sight Glasses for Chemical and Pharmaceutical Processes

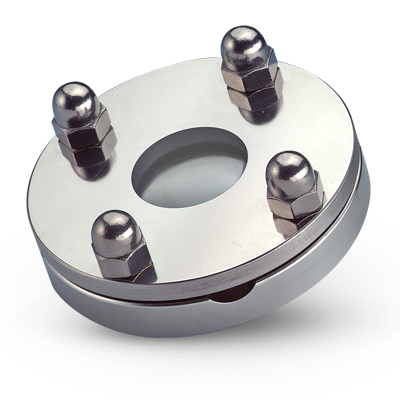

For aseptic and sanitary applications, the new flush-mounted sight glass from L.J. Star Incorporated provides clear process visibility and unmatched safety with minimal maintenance requirements. The sight glass design eliminates the dead leg created by a standard sanitary ferrule connection, avoiding air pockets and trapped undissolved materials.
