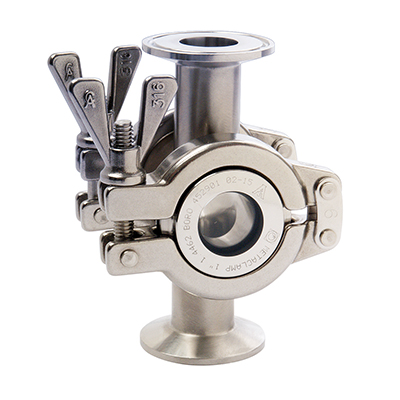

MetaClamp® Sanitary Sight Flow Indicator
The strongest, most secure glass elements available, METAGLAS® mechanically prestressed windows, are now available in a sanitary design sight flow indicator in processing applications. MetaClamp® sanitary-service fittings.
Described as offering the optics of glass and the strength of steel, these glass elements provide a level of safety, and a useful service life, well beyond that provided by conventional tempered glass or plastic in sanitary service. Even at the most extreme temperature (as high as 536° F) or in overpressure situations, sudden, total failure – that involving leakage or explosive shattering of the glass – essentially never occurs. Click here to see all of our Flow Indicators<
Request a Quote
Request a Quote

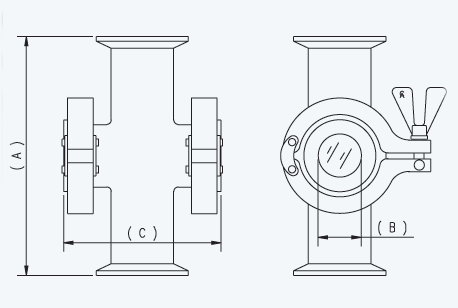

| DIMENSIONS (mm/inches) | ||||
|---|---|---|---|---|
| Tube Size | A | B | C | Wt.(lbs) |
| 1/2″ | 4.50″ | 0.39″ | 2.1″ | 1.5 |
| 3/4″ | 4.75″ | 0.39″ | 2.4″ | 1.8 |
| 1″ | 5.25″ | 0.98″ | 2.8″ | 2.0 |
| 1-1/2″ | 5.75″ | 0.98″ | 3.3″ | 2.5 |
| 2″ | 6.75″ | 1.18″ | 3.8″ | 3.0 |
| 2-1/2″ | 7.25″ | 1.38″ | 4.5″ | 4.0 |
| 3″ | 7.75″ | 1.96″ | 5.0″ | 4.5 |
| 4″ | 9.5″ | 2.16″ | 6.4″ | 6.0 |
Sanitary visual flow indicators are available in sizes 1/2 inch through 6 inches, in either 316 or 304 stainless steel. Line connections are available in five styles: clamp, orbital weld, flange, bevel seat and I-Line. Gasket options include Buna, EPDM, Viton, PTFE and Silicone, all conforming to USP Class VI and FDA.
