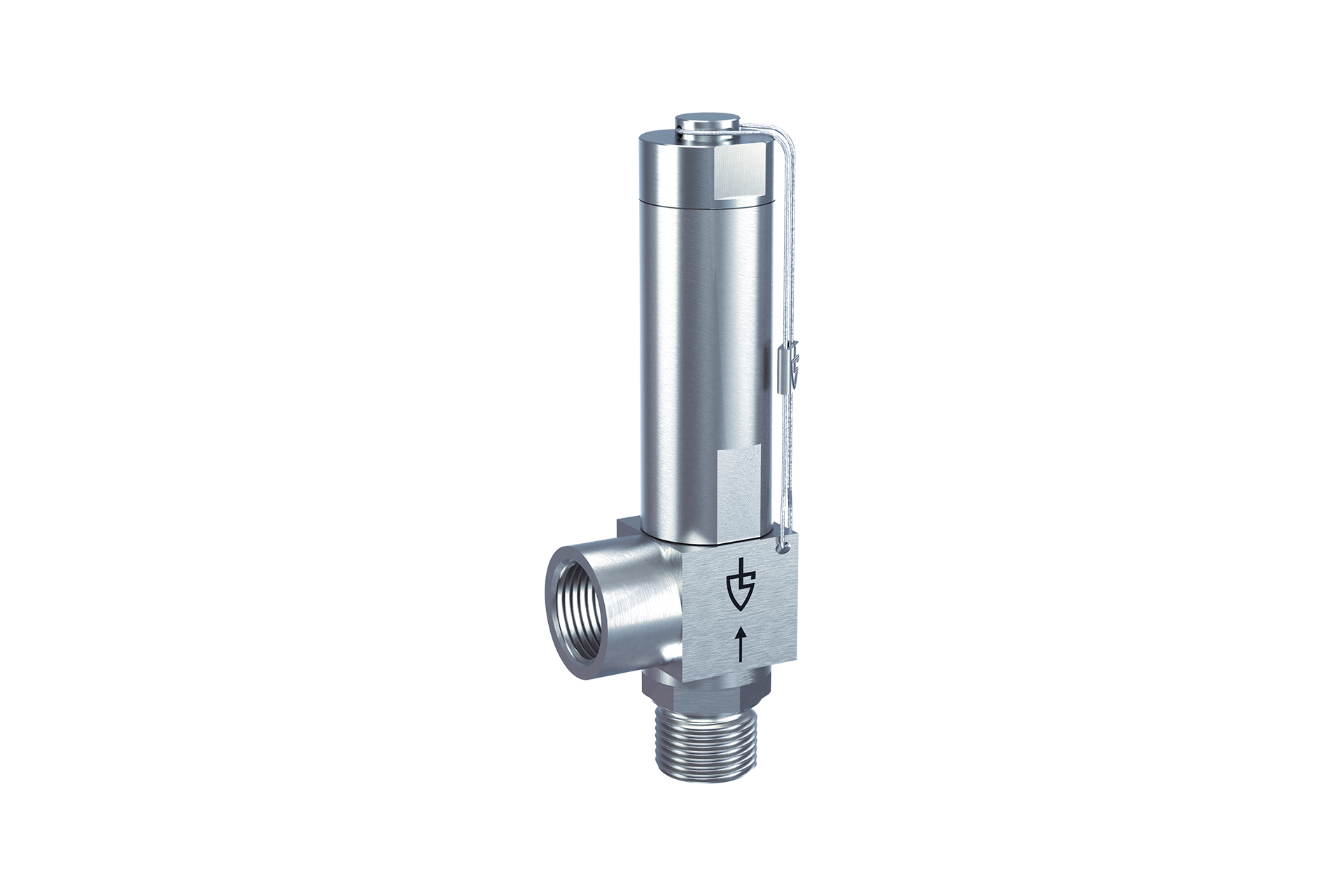

Goetze 420 Series Safety Valves
Safety valves made of stainless steel, angle-type with threaded connections.
Suitable for
| Liquids | Neutral and non-neutral |
| Air, gases and vapors | Neutral and non-neutral |
| Steam |
Examples of Use
For the protection of:
- Pressure tanks and systems for neutral and non-neutral vapors, gases and liquids
- Steam boilers
- Steam plants
Within:
- Chemical plants
- Biogas plants
- Desalination plants
- Process technology
- Process equipment construction
- Medical technology
- Shipbuilding industry and marine equipment
- Secondary areas in the Food, Beverage, Pharmaceutical and Cosmetics industries
- Offshore applications
- General applications with screwed pipe connections
- Hydrogen applications
Safety valves are set and sealed at the factory.
Available Nominal Diameters and Connection Sizes
| Nominal Diameter DN | 8 | 10 | ||||
| Inlet | 1/4″ (8) | KV (8 mm) | KV (10 mm) | 3/8″ (10) | KV (10 mm) | KV (12 mm) |
| Outlet 3/8″ (10) | ■ | ■ | ■ | ■ | ■ | ■ |
| Outlet KV (12 mm) | ■ | ■ | ■ | ■ | ■ | ■ |
