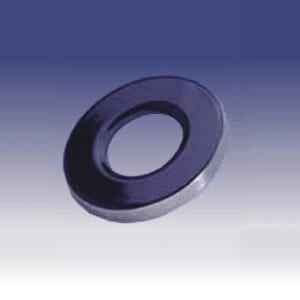

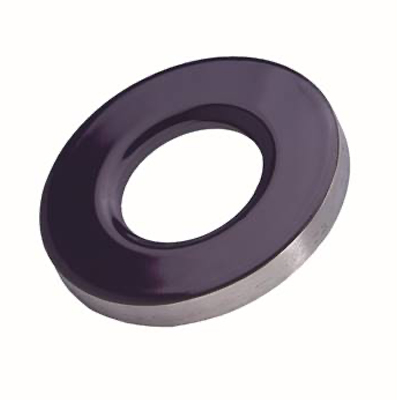

Fused Sight Glass Assembly for Glass Lined Reactors
Sight Glass With METAGLAS® For Reactors
Extremely durable sight glass constructed of Soda Lime and fused with a glass coated metal frame that provides rigidity to prevent breakage.
Request a Quote
Request a QuoteTechnical Data
Manufactured and Tested to:
- Directive for pressure equipment 97/23/EC Modul H/H1 (DIN/EN/ISO 9001)
- AD Standards W0/TRD 100
- Sight glass fused to metal similar to DIN 7079
- Materials to VdTÜV-specifications and the DIN/EN designated standard
- Ring material: P 265 GH ( 1.0425) EN 10028-2
- Sight Glass: B270
- Enamel DD 3009 blue or white
| Size | Operating Pressure | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| -1/10 bar | -1/16 bar | ||||||||
| DN (mm) | DN (inch) | d1 | d2 | S1 | S | d1 | d2 | S1 | S |
| 50 | – | 102 | 50 | 15 | 20 | 102 | 50 | 15 | 20 |
| – | 3 | 127 | 75 | 18 | 23 | 127 | 75 | 23 | 28 |
| 80 | – | 137 | 80 | 20 | 25 | 137 | 80 | 25 | 30 |
| 100 | – | 158 | 95 | 25 | 30 | 158 | 95 | 28 | 33 |
| 150 | – | 214 | 130 | 30 | 35 | 214 | 130 | 35 | 40 |
| 200 | – | 269 | 150 | 35 | 40 | 269 | 150 | 40 | 45 |
Datasheet - Sight Glass for Reactors and Vessels
Datasheet - METAGLAS® Line Overview
Installation / Operation / Maintenance Manual
METAGLAS® Extreme Pressure Test
Sight Glass Application Handbook
Step-by-Step Guide to Sight Glass Selection
Why METAGLAS®
How to Ensure Sight Glass Safety - Tutorial
How to Select and Maintain Sight Glasses for Chemical and Pharmaceutical Applications
Six Tips for Critical Sight Glass Application White Paper
Seis Consejos Para Aplicaciones Críticas Con Mirillas
Compression vs. Fusion: The Source of Strength in Fused Sight Glasses for Chemical and Pharmaceutical Processes
Mechanically pre-stressed sight glasses are now available with glass coated metal, allowing no metal exposed to the product. Constructed of glass fused with a dimensionally adapted glass coated metal frame-ring, this safety sight glass constitutes an alternative to conventionally annealed or thermally pre-stressed (tempered) glass discs.
A principal advantage of this sight glass lies in the fact that the possibility of a sudden, unexpected rupture is totally excluded, and any crack that might develop, at worst, may slightly affect visibility. In addition to the unsurpassed pressure and impact resistance of this sight glass, the metal frame provides rigidity to prevent breakage in the event of uneven bolt tightening during installation.
