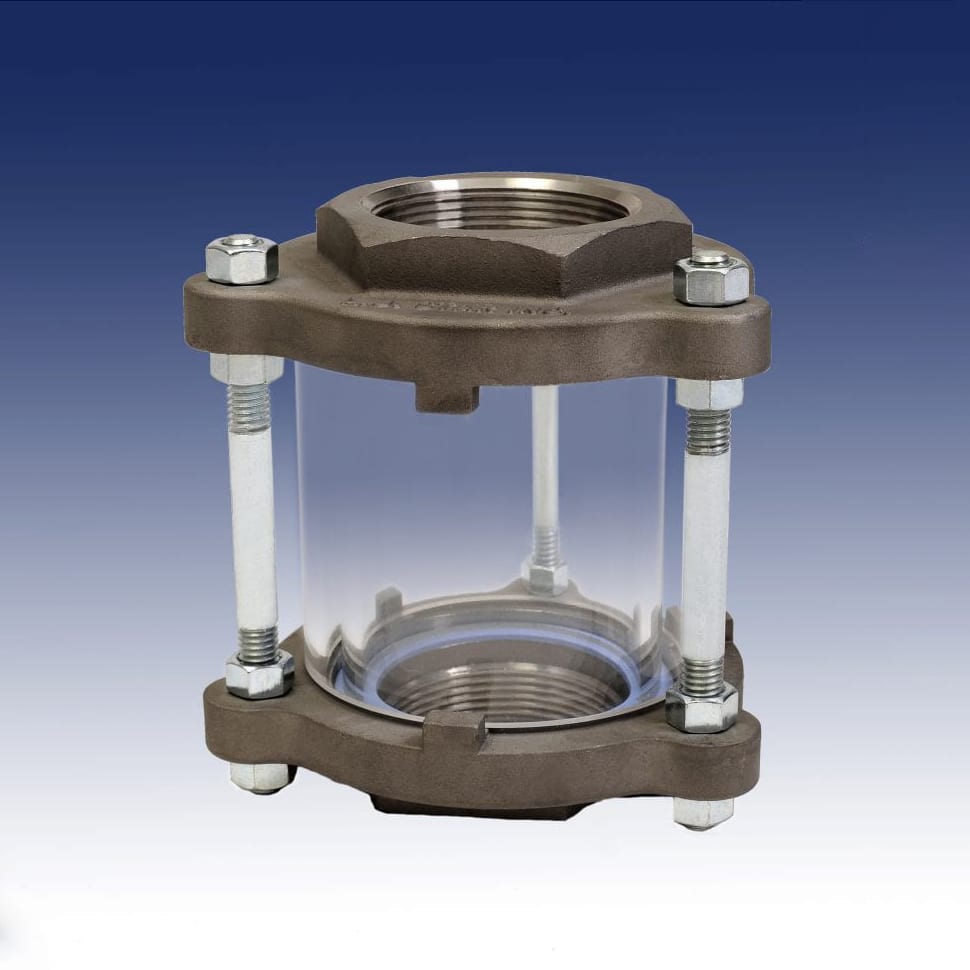

Full View Industrial Sight Flow Indicator (360° View), Threaded Mount

A 360° full-view flow indicator with threaded connection for pipe sizes 1/2″ to 2″. The design permits observation from almost any direction under ambient light. It is equipped with an impact-deterrent shield as standard. Pressure ratings range from 100 to 150 PSI depending on size.

This L.J. Star product carries Canadian Registration Number (CRN) registration.

Request a Quote
Request a Quote

Styles

  • Plain Style – installed in any position.
  • Drip Tube Style – well suited for vertical lines with downward flow direction.

Standard Safety and Maintenance Features

  • Investment cast surface finish
  • In-stock delivery

Materials of Construction

  • Standard alloys, 316 stainless steel; carbon steel
  • Standard gasket materials  Neoprene; PTFE

Product Diagram



Full View Threaded Model

Pipe Size DimensionA          B          C Approx. Wt. (Lbs.) Working Pressure (Psi.)
1/8″ 2” 4-1/2″ 1-3/4” 2 150
1/4″ 2” 4-1/2″ 1-3/4” 2 150
1/2″ 2” 4-1/2” 1-3/4” 2 150
3/8″ 2” 4-1/2” 1-3/4” 2 150
3/4″ 2” 4-1/2” 1-3/4” 2 150
1” 2-1/4″ 4-1/2” 2” 3 150
1-1/2” 2-5/8″ 4-3/4” 2-1/2″ 5 120
2” 2-7/8″ 5-1/2” 3″ 8 100

The specifications contained herein are subject to change without notice and any user of said specifications should verify from the manufacturer that the specifications are currently in effect. Otherwise, the manufacturer assumes no responsibility for the use of specifications which may have been changed and are no longer in effect.
