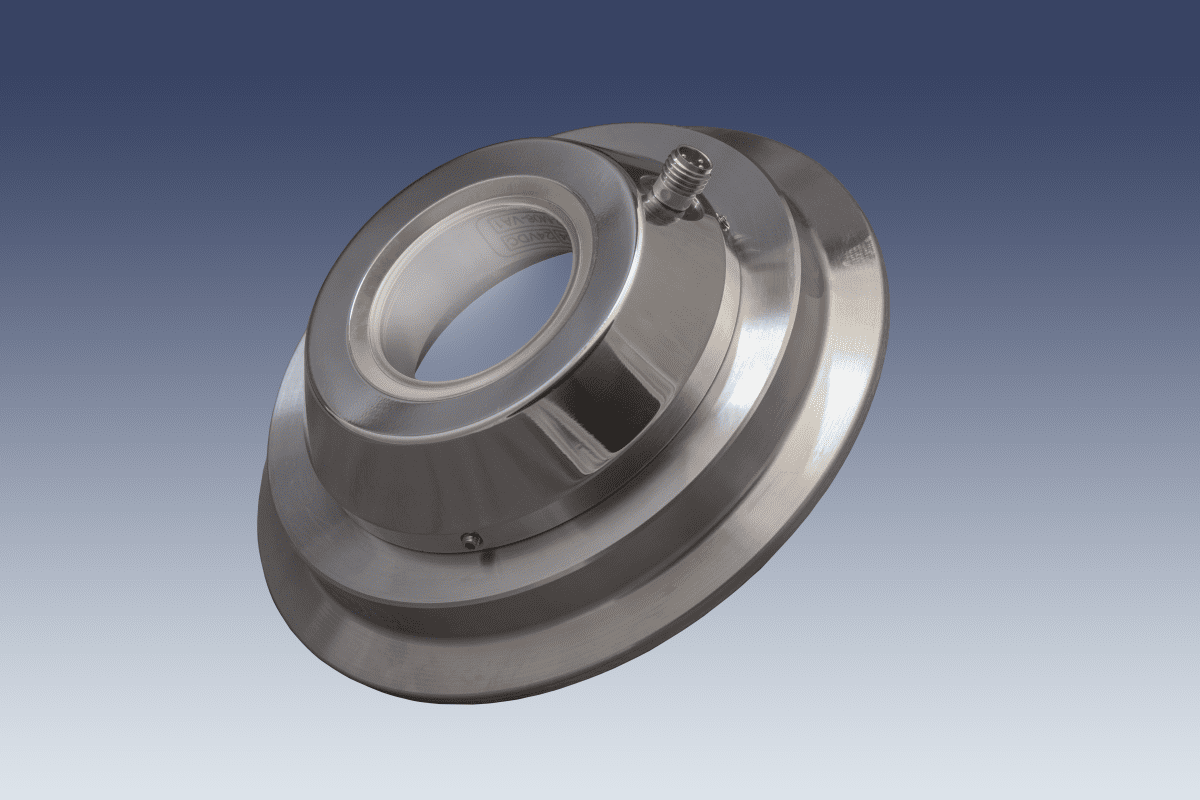

MetaClamp® LED Ring Light Series SGL

The new MetaClamp® LED Ring Light Series SGL is a powerful yet compact illumination system for sanitary processing equipment providing illumination and viewing through the same window.

This unique combination sight/light glass incorporates the L.J. Star MetaClamp® system with METAGLAS® safety windows. They can be used to view the interior of either new or existing sanitary processing equipment.

Unlike other solutions that used separate viewing and fiber optic light assemblies, this innovative and compact design mounts directly onto sanitary ferrules for use in combined sight and light ports (single port). The design is both less expensive and more durable for industrial settings, since it uses fewer sub-assembly components.

METAGLAS® safety windows with the MetaClamp® sanitary connection provide the strongest, most secure sanitary viewing option available. Essentially immune to catastrophic failure, these windows are comprised of stainless steel and borosilicate glass, fused together to create a window so uniformly compressed it tolerates both extreme pressure and temperature, serving reliably for years in applications where conventional soda lime or BoroPlus windows fail repeatedly.

Three sizes of the SGL Light attach directly to either a 2-1/2”, 3”, 4”, 6” or 8” MetaClamp® view port, which eliminates separate mounting of the light source. The polished housing is made of 316 stainless steel, which carries NEMA 4X and IP68 ratings.

Request a Quote
Request a Quote

Key Applications:

Pharmaceutical, biotech, brewery and food processing industries. Used for illuminating bioreactors, mixers, brew kettles, filters and the interior of tanks, hoppers, silos, agitators, separators, pipelines and other, usually closed, containers in non-hazardous areas.

Product Specifications:

SGL LED Technology:

  • Ultra-bright LEDs provide up to 399 lumens, equal to a typical 80-Watt halogen light
  • Capable of continuous operation
  • Cool white, 5000K color temperature, optimized for stainless steel vessels
  • LEDs have long service life and are vibration and impact resistant
  • No heat radiation into process vessel (cold light output)

Protection & Operating Conditions:

    • Dust and waterjet tight to NEMA 4 & 4X and IP68
    • Approved for use in ambient temperatures from 0°C up to +50°C at the cable entry gland.

Electrical Data:

Operating voltage is 24VDC (+-10%) with continuous current of 10mA. The light is equipped with a 4-pin M8 connector and supplied with a 10-meter power cable (other lengths available). Cable also available with compact 3-minute timer and switch.

Electropolishing available.
