Butt-Weld Sight Glass Assembly Series MV

Sight Glass – Low Cost Weld Neck Sight Port with Lumiglas®

This sight glass offers easy cleaning and clear field of visibility and can come equipped with an optional light source. Suitable for use in the chemical, pharmaceutical and food industries.
How to Ensure Sight Glass Safety - Tutorial
Request a Quote
Request a Quote

Compare Sight Glass Specifications

Model MetaClamp® Sanitary Sight Glass Window Aseptic Sight Glass Window Fused Sight Glass Assembly for Glass-Lined Reactors Butt-Weld Sight Glass Assembly Series MV
MOUNT / CONNECTION Sanitary (tri-) clamp connection; also inline as sanitary VFI Flush-mount weld-on via NA-Connect™ or TCI BoltConnect® Bolt-on / flanged for glass-lined (enameled) reactors Butt-weld / weld-neck to DIN 11851 (dairy); slotted cover nut
GLASS Borosilicate (METAGLAS® fused); soda lime option Borosilicate (METAGLAS®) to DIN 7080 Soda lime (B270) Borosilicate (standard); METAGLAS® optional
METAL RING / SEAL Duplex SS 1.4462 or Hastelloy®; one-piece fused (no gasket) Stainless steel,Hastelloy; incorporates MetaClamp® window P265GH (1.0425) glass-coated frame (enamel DD 3009); no metal contacts product Stainless steel; silicone seal ring (gasketed disc, removable)
MAX TEMP Up to 536°F (continuous); 572°F peak Up to 392°F –60°F to 250°F Up to 428°F (220°C), based on seal ring
PRESSURE Full vacuum to 230 psig Up to 100 psi Full vacuum to 10 bar (~145 psi) or 16 bar (~232 psi) by model Up to 150 psi depends on size; vacuum rated
SIZE RANGE ½” to 12″ ½” to 4″ 6″ DN 50 to DN 200 (~2″ to 8″) From DN 50 to DN 150
STANDARDS & APPROVALS USP Type I, USP Class VI, BPE compliant, ASTM/ASME, TÜV, DIN/EN, 10 Ra finish USP Type I, USP Class VI, BPE compliant PED 97/23/EC Module H/H1, AD 2000 W0/TRD 100, fused similar to DIN 7079, VdTÜV DIN 11851; CRN registered (except Alberta)
SANITARY FEATURES Crevice-free, uninterrupted surface, no bacteria trap; CIP/SIP in place Eliminates ferrule dead leg; no air pockets or trapped material; CIP/SIP in place Glass-coated frame leaves no exposed metal in corrosive glass-lined service Frequent-opening design for easy cleaning; dairy-standard fitting
TYPICAL APPLICATION Pharma, food & beverage, sanitary process vessels and inline ports Aseptic pharma / biotech; sterile process lines where dead legs are unacceptable Glass-lined / enameled reactors; corrosion-critical chemical service Dairy, brewing, food & beverage, pharma where frequent opening is needed
EXTRA INFO One-piece fused disc — strength of steel, optics of glass. Accepts Lumiglas® USL33/USL35 luminaires. Flush-mounted design is the key differentiator. Window need not be removed during CIP/SIP. For glass-lined reactor duty, not general sanitary. Enamel available blue or white. Metal frame prevents breakage from uneven bolt torque. Low-cost weld-neck port. Optional MV-ME / MV-SLM Lumiglas® light shares the same port. Wipers avail.

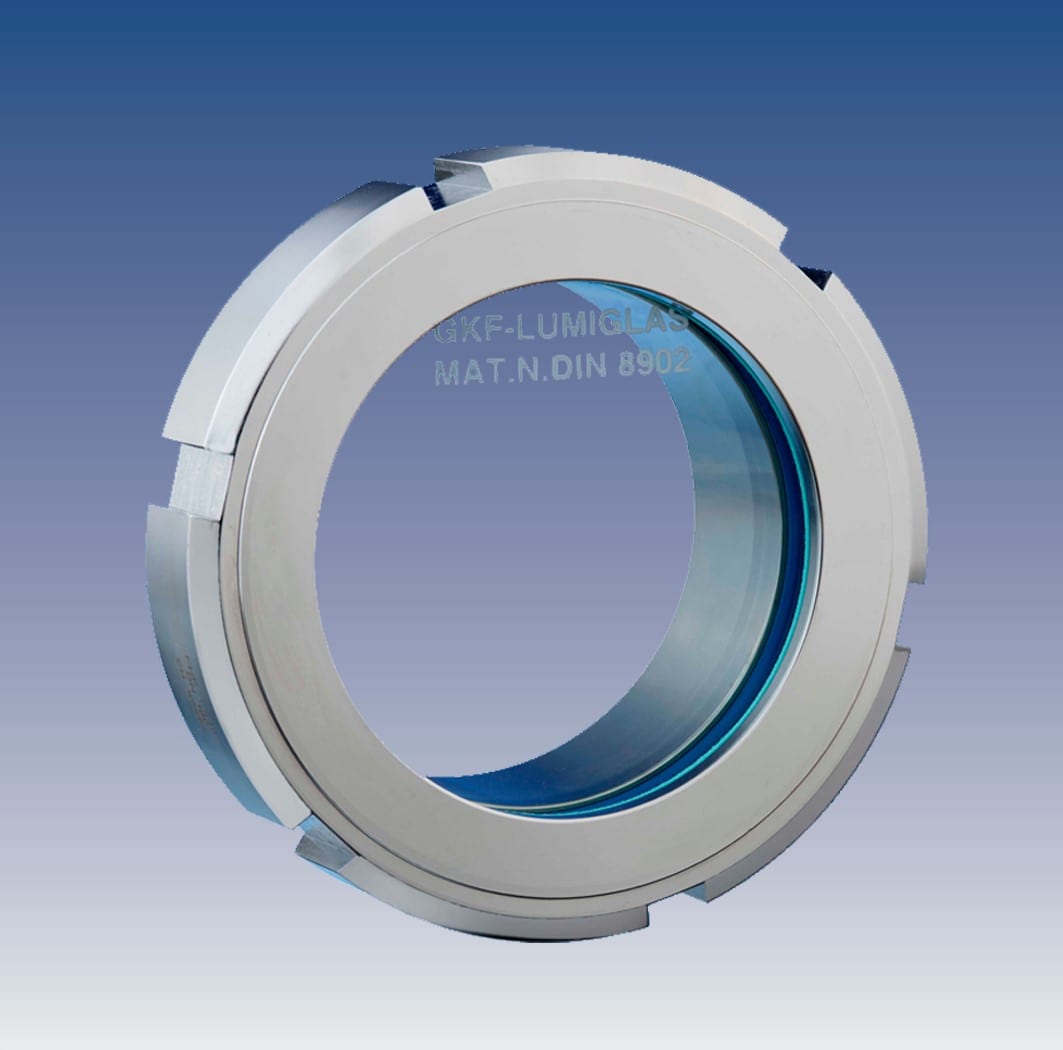

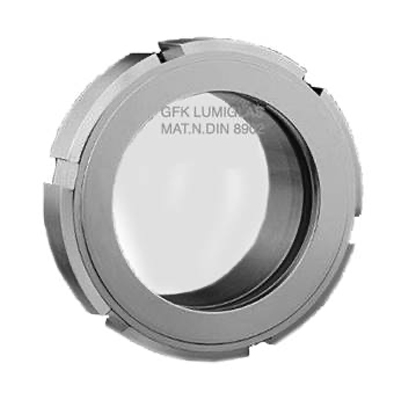

A combination of easy cleaning and a clear field of visibility is provided by this specially constructed sight glass unit. With a butt-weld connection, these Series-MV sight glasses allow the maximum view area in a minimal amount of space. An optional compact light source, type MV-ME, eliminates the added cost of a separate light port. Series-MV ports are particularly suitable for use in the chemical, pharmaceutical, food and beverage industries where frequent simple opening of the sight glass is required. Wipers are also available.

This L.J. Star product carries Canadian Registration Number (CRN) registration (Except Alberta).
